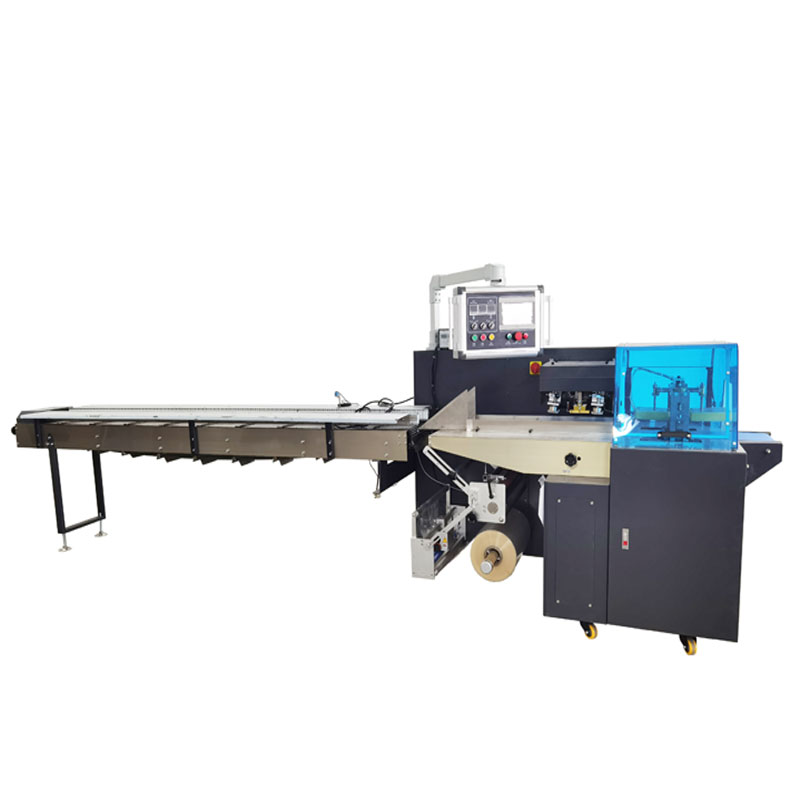

Horizontal Flow Wrap Machine

HiTec-S series horizontal flow packers is the perfect choice to meet the production needs of every one from small start-ups to large companies with higher speed wrapping requirements, it is used in nearly all industry branches, for packaging of cookies in the food industry, used in the field of pharmaceuticals for packaging of blister packs, for packing under hygienic aspects of face masks,etc. it can run with PP, PE, recyclable sorts of film or bio film made of renewable raw material.

GET A PRICE/QUOTE

ASK A QUESTION

RECEIVE DOCUMENTATION

Packaging styles

Pillow bag with gusset

Pillow bag with gusset

Pillow sealing bag

Pillow sealing bag

Zig-zag cut pillow bag

Zig-zag cut pillow bag

Bread or bakery in thermoforming

Bread or bakery in thermoforming

The Benefits

High flexibility with maximum productivity.

Offers wider product size range, suitable for nearly any industry, such as bakery, bars, biscuits, cookies, and crackers, fresh produce, medical devices and more.

Fast heat sealing and very tight seals.

Hygienic design, easy to operate, clean and maintain.

Nitrogen gas filling device(optional).

Flat cut, Zig-zag cut or clip cut-off.

Easy set-up, fast changeover, reduce product and film waste during production.

Flexible design can handle a wide range of products.

Fast delivery, quick parts and service response.

Low maintenance costs.

Superior seal integrity and package quality.

ModelHiTec-S250HiTec-S450HiTec-S600
Capacity20-80 bags / min40-230 bags / min40-230 bags / min
Film width450 / 600mm250 / 350/ 450mm350-800mm
Bag length120-450mm65-190/120-280mm65-420mm
Bag width50-200/50-280mm30-210mm50-210mm
Height10-120mm40-70mmMax.60mm
Roll diameterMax.320mmMax.320mmMax.320mm
Power220V 50/60Hz/3.2KW220V 50/60Hz/2.8KW220V 50/60Hz/2.6KW
Weight960-1160KG800-980KG700-920KG
Dimensions4380 *970 *1500mm4120 * 820 *1320mm3984 *800 *1365mm

Horizontal Flow Wrap Machine

-Automatic reel splicer

-Double reel holder

-Nitrogen gas supply

-Automatic sorting system

Horizontal flow packaging applications


HiTec's line of horizontal form, fill, seal (HFFS) flow packers provide optimum sealing, wrapping and packaging for a variety of applications, including difficult-to-handle products. Learn how HiTec can help you find custom form, fill and seal solutions for your product.


Horizontal flow wrappers mainly perform three tasks in the continuous operation, bag forming, product filling, as well as sealing and discharging the finished package. During the horizontal wrapping process, the product is placed on the flat chain conveyor belt through manual or automatic sorting system, where it travels horizontally to the sealing head, then, a heat-sealable film is wrapped around the product, seal and cut, all of these processes are completed automatically by the same machine, the result is a protective, consistent, and prefessional looking package. It can be combined with other equipment like cartoning machine, cardboard dispenser, as well as track and trace system for seamless traceability of the packaged products. Horizontal flow wrappers can be used for a wide range of products and applications, such as delicate products, singe-serve goods, products in trays(cleaning wipes, cookies, pastries, desserts, napkins, pre-wrapped plastic cutlery, etc.), even medical devices and industrial parts. Based on the desired output volume, HiTec flowpack machines provide optional automatic splicing device, the film reel can either be changed manually or with the help of splicer once it run out, it can fully connects the old and new film to reduce downtime and avoid disturbances at the film former.


Horizontal flow wrapping machine, Horizontal flow wrap machine, Horizontal flow wrap packing machine, horizontal flow wrap machine price, horizontal flow wrap biscuit packaging machine, horizontal flow wrap packaging machine, horizontal flow pack packaging machine, horizontal flow packer, horizontal flow pack machines, horizontal flow pack wrapper machine
