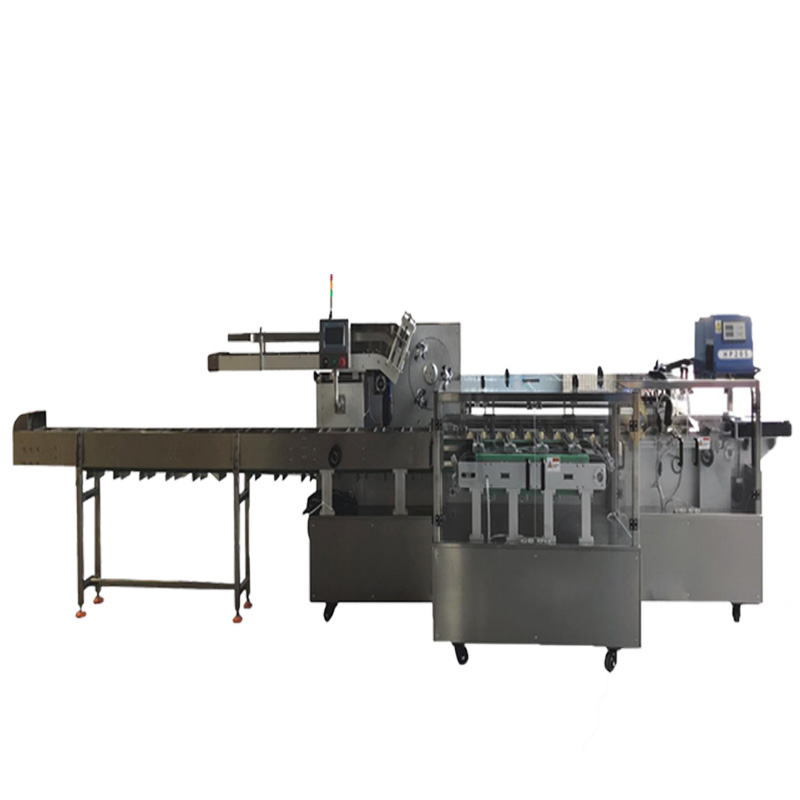

Automatic Cartoning Machine

HiTec-H150 cartoning machines are the high productivity model with output of up to 150 cartons per minute, designed to pack a wide range of products, and thus ideal for enterprises with large production demand, it is predominantly used for the cartoning of products from the pharmaceutical, sundry goods, confectionary, cosmetics, as well as food industries, products can be packaged in cartons individually, or as a multi-pack with a package insert.

GET A PRICE/QUOTE

ASK A QUESTION

RECEIVE DOCUMENTATION

Packaging styles

The Benefits

Easily understandable operation, user-friendly, support in national language.

Dual inserts available with upper guides.

Hygienic design.

Fast, reproducible and tool-free format change, additional options for further simplifications available.

Trouble-free processing or critical folding box material due to forced box erection.

Easily adapted to the product and format.

Box erection function.

Tack and trace technology.

Technical data
Working video
Layout
Accessories

Model	HiTec-H150
Capacity	80-150 cartons/min
Carton type	300-450 g/㎡, carton impression≥0.4mm(with Pre-folding effect)
Carton size	Length: 135-200mm, Width: 50-150mm, Height: 20-40mm
Air pressure	0.5-0.8Mpa(prepared by customer own)
Machine material	Aluminum + SUS 304 stainless steel
Power	1-P, 220V, 50/60Hz, 2.4Kw
Weight	1800KG
Dimension	3754 * 1902 * 1999mm

None

Horizontal cartoner machine

Horizontal cartoning machine as one of two types of cartoning machine, which combine flexibility, efficiency, and precision at high mechanical speeds, it will pick up a single piece from a stack of fold carton, and then get it to stand up straight, or erect, the machine will fill it with a product, a bag of procuct or a number of products horizontally through an end that is open, and then close it by tucking the end flaps of the carton or applying glue or adhesive. The product may be pushed in the carton either through the mechanical sleeve or by pressurized air.

Horizontal end load cartoners are the most widely used type of carton packing for products like food, confectionery, toothpaste, pharmaceutical, cosmetics, sundry goods, etc. It can be used to process kinds of carton material grades(includes the recycling grade materials). Several control mechanisms ensure an efficient operation.
